RFQ Checklist
- 2D drawing and 3D model with revision level
- Material grade and surface treatment requirement
- Critical dimensions, tolerances, and inspection points
- Prototype quantity, annual forecast, and delivery destination
← Back to Products
Actuator Housings
Custom CNC machined actuator housings for linear, rotary, hydraulic, pneumatic, and electric motion assemblies.
Target Buyer:Best for OEM engineers and sourcing teams replacing castings, redesigning housings, or localizing actuator component supply.
Capability Highlights
- CNC milling and turning support for complex housing geometry
- Material and finish review for load, corrosion, and assembly needs
- Prototype-to-batch production with inspection checkpoints
Typical Applications
- Linear actuator bodies
- Rotary actuator cases
- Valve actuator housings
- Motor and gearbox interface housings
Engineering Focus
- Critical datums, bearing bores, sealing faces, and mounting interfaces
- Wall thickness, tool access, flatness, concentricity, and burr-control planning
- Material options such as aluminum, stainless steel, alloy steel, and surface-treated parts
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Critical interface control | Drawing-defined | Bearing bores, seals, and mounting faces drive actuator assembly fit and repeatability. |
| Surface finish and coating | Application-specific | Finish selection affects corrosion resistance, sealing behavior, and downstream assembly. |
Risk Controls
- Housing distortion or leakage risk: Review wall thickness, clamping plan, sealing faces, and post-machining inspection before sample build.
- Assembly mismatch: Lock datum scheme and mating-part drawings before quotation freeze.

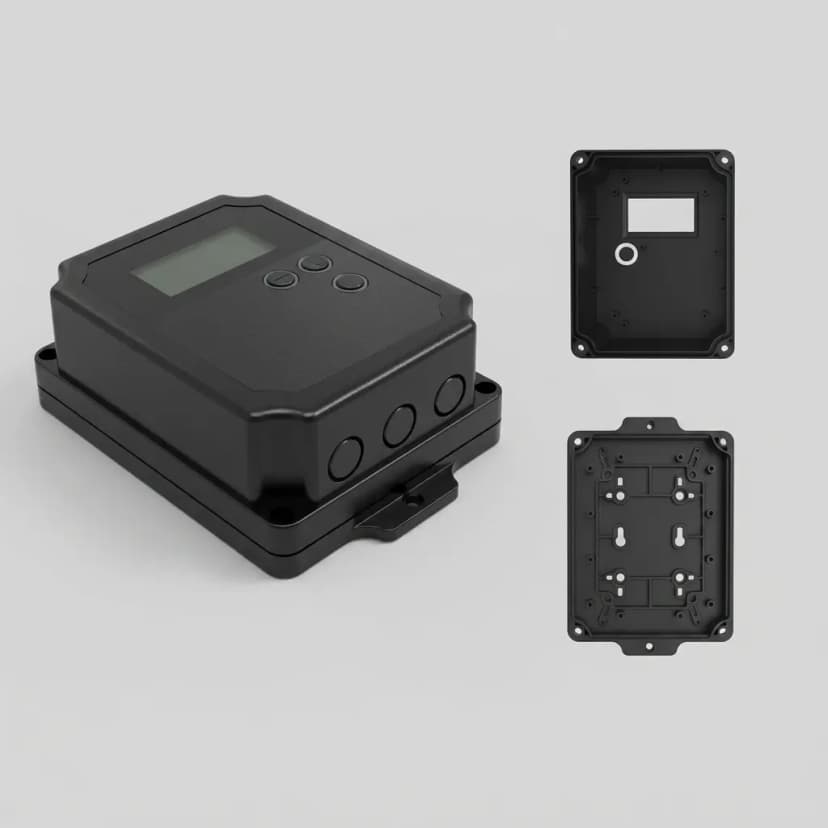

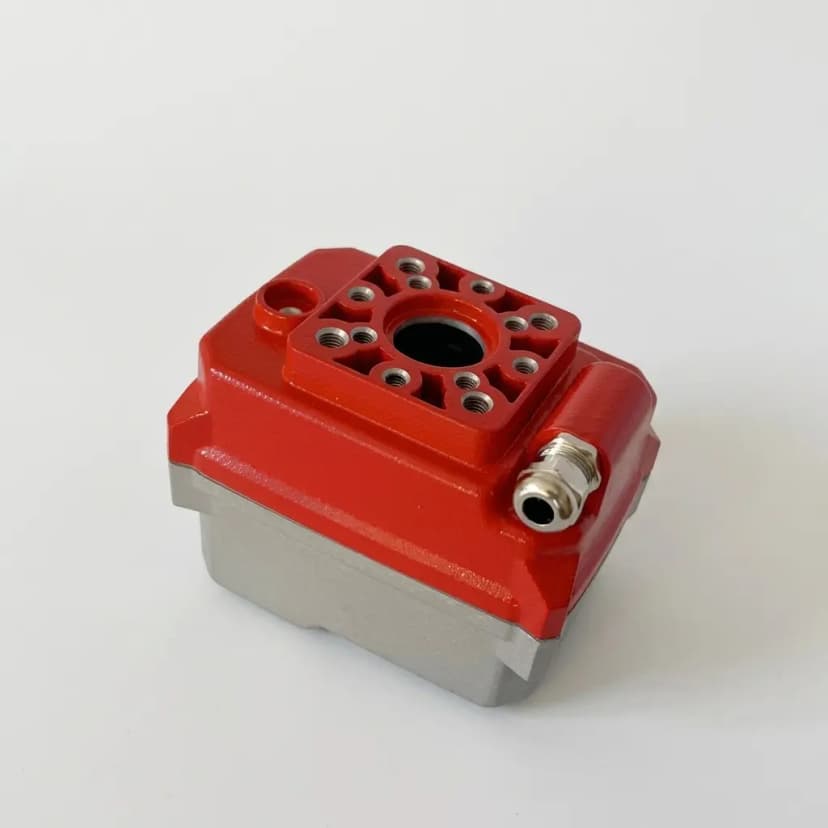

Product Gallery
Buyer FAQ
Can you machine housings from our existing actuator drawing?
Yes. Send the 2D drawing, 3D model, material, finish, and critical inspection points so we can review manufacturability and quote scope.
Do you support prototype and batch housing production?
Yes. We can support prototype review first, then align batch production around agreed inspection and packaging requirements.
Related Resources
Inquiry Email
Include drawings, material, finish, tolerances, quantity, and delivery location.
