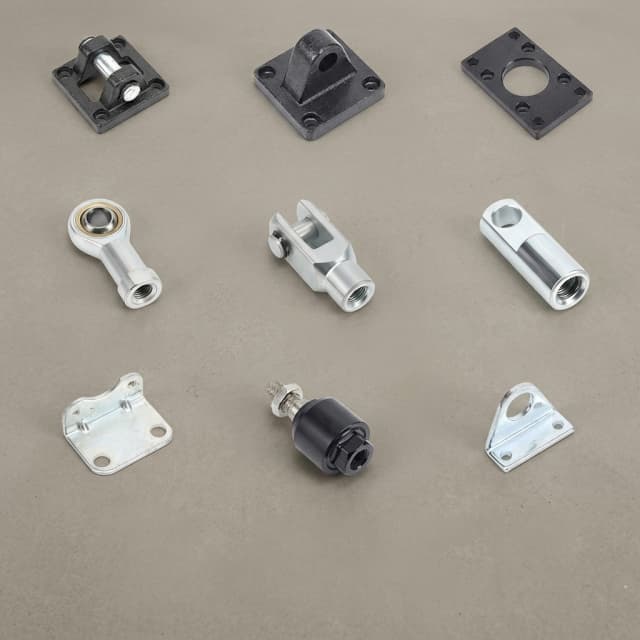

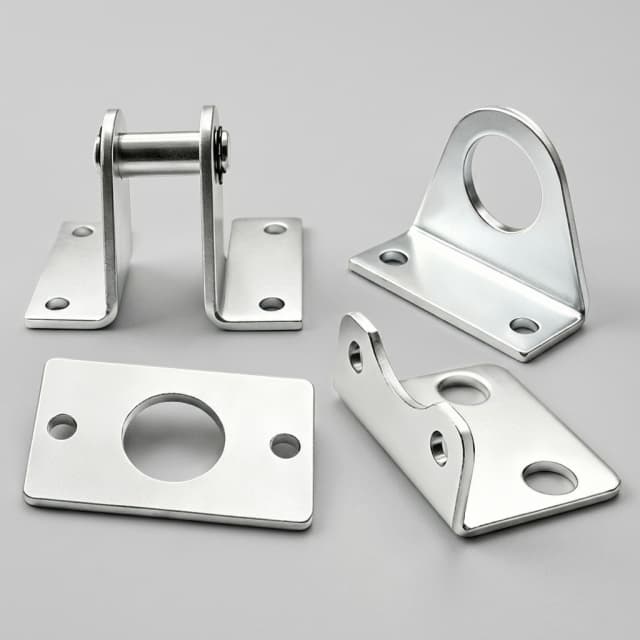

Actuator Bracket CNC Milling
Estimate the machining complexity of your actuator bracket based on dimensions, material, and tolerance requirements before sending out the RFQ.
Engineering Summary
Core conclusions from our CNC milling experience with actuator brackets.
Tolerance selection directly multiplies cost.
Use general tolerances only for non-critical dimensions, then call out explicit GD&T or size tolerances for mounting-hole patterns, datum faces, and bearing interfaces. Extreme tolerance requests should trigger DFM review before pricing.
Material choice changes both machining and inspection.
6061-T6 is usually the fastest economical baseline for brackets. Stainless grades add heat, work-hardening, and tool-life risk; 7075 adds strength but can increase stress-relief and finishing concerns.
True Position GD&T is critical for actuator mounting.
Instead of linear dimensions, applying True Position to mounting holes ensures the actuator aligns properly every time, reducing assembly failures.
Standard Milling Route
The typical CNC milling sequence for an actuator bracket.
Review 3D model, datums, tolerances, and material callout.
Program toolpaths (roughing and finishing passes).
First operation setup: Face, profile, drill, and tap.
Second operation setup: Machine opposite side, finish critical datums.
Deburring, surface finishing (e.g., anodizing), and CMM inspection.
Process Capabilities & Limitations
What you can expect from standard CNC milling.
| Claim | Engineering Basis | Boundary / Limit | Source |
|---|---|---|---|
| General size tolerance baseline | ISO 2768 is the relevant general-tolerance family for linear and angular dimensions without individual tolerance indications. The current ISO catalogue page for ISO 2768 was checked on July 6, 2026. | A title-block general tolerance is not enough for mounting holes, bearing seats, dowel holes, or functional datum faces. | ISO 2768 catalogue |
| Geometrical general tolerance status | ISO 22081:2021 covers general geometrical specifications and general size specifications. ISO 2768-2:1989 is a legacy geometrical-tolerance reference and should not be treated as the only current authority. | Confirm the customer drawing standard before quoting; many U.S. buyers expect ASME Y14.5 language instead of ISO GPS language. | ISO 22081:2021 |
| GD&T for mounting holes | ASME describes Y14.5 as the authoritative guideline for GD&T drawing language, including symbols, rules, definitions, requirements, defaults, and recommended practices. | True position does not replace process capability review; it tells the shop how the hole pattern must relate to datums. | ASME Y14.5 |
| 6061-T6 material baseline | ASM/MatWeb lists 6061-T6 material properties and machinability data; use it as a material-screening input rather than a universal cycle-time guarantee. | Actual bracket cost still depends on cutter access, chip evacuation, workholding, finish, and inspection requirements. | ASM Material Data Sheet |
Decision Boundaries
Use the calculator as a routing screen, then use these tradeoffs to decide what belongs in the drawing and RFQ package.
| Scenario | Recommended routing | Watch-out |
|---|---|---|
Prototype bracket Geometry is changing and fit risk is still being tested. | Use 6061-T6, as-machined finish, standard general tolerances, and explicit tolerances only on the actuator interface. | Avoid paying for cosmetic anodize or extreme tolerances before the mounting stack is proven. |
Production bracket Hole pattern, load path, and assembly datum scheme are stable. | Freeze datums, use true position for the mounting pattern, define inspection quantity, and quote finish as a controlled operation. | Supplier comparisons are unreliable if one quote includes CMM/FAI and another only includes dimensional spot checks. |
High-load or washdown bracket The actuator mount sees high shock, heat, corrosion, or repeated disassembly. | Evaluate 7075, carbon steel, or stainless with an engineering review of thread engagement, inserts, coating, and stress relief. | A stronger alloy can raise machining time and create distortion or coating constraints. |
Misuse Risks and Mitigations
These are the common ways a bracket milling RFQ becomes under-specified or over-priced.
Tolerance over-specification
Impact: Quote inflation, added inspection, longer lead time
Use general tolerances for non-functional faces; isolate tight tolerances to datum features and mounting interfaces.
Thin-wall or high aspect-ratio geometry
Impact: Chatter, bowing, poor flatness, inconsistent anodize appearance
Add fixture stock, review wall thickness, machine in balanced passes, and consider stress-relieved material.
Thread pull-out in aluminum
Impact: Field loosening or bracket replacement after repeated service
Specify thread engagement, helicoils/inserts, torque assumptions, and inspection of tapped holes.
Bracket RFQ Checklist
Provide these details to get an accurate machining quote for your actuator bracket.
- 3D CAD model (STEP or IGES format)
- 2D drawing with critical datums and tolerances
- Material specification (e.g., AL 6061-T6)
- Surface finish requirements (e.g., clear anodize, bead blast)
- Thread sizes and insert requirements (e.g., Helicoil)
- Required quantity and inspection reports (e.g., FAI)
Inquiry Email
Include drawings, material, finish, tolerances, quantity, and delivery location.
Related Manufacturing Paths
Keep this page focused on actuator bracket CNC milling; use these adjacent pages when the design problem shifts.
Actuator bracket tapping
Calculate tap drill sizes and evaluate thread machinability risks for brackets.
Actuator bracket hole machining
Use when the hole pattern, datum control, thread, fit, or CMM evidence is the main quote risk.
Actuator component CMM inspection
Use when sampling level, CMM capability, and inspection report scope drive the bracket quote.
Actuator base plate machining
Use when the bracket is part of a larger base-plate or adapter stack.
Actuator bearing bracket
Use when bearing alignment and bore concentricity are the main design risk.
Actuator brackets and mounts
Use for product-family context, materials, and mount styles.
Actuator bracket manufacturer
Use to estimate manufacturing routing, quoting risk, and RFQ readiness for actuator brackets.
Frequently Asked Questions
Technical Q&A regarding actuator bracket CNC milling.
Q.What materials are best for actuator brackets?
Aluminum 6061-T6 is the usual first-pass choice for actuator brackets because it balances strength, corrosion resistance, coating acceptance, and machining efficiency. Use 7075, carbon steel, or stainless only when load, wear, heat, or corrosion exposure justifies the added machining and inspection burden.
Q.What tolerances can CNC milling hold on actuator brackets?
Standard CNC milling can usually support about ±0.1 mm on non-critical bracket dimensions when the drawing uses a clear general tolerance note. Critical mounting holes, dowel holes, and datum faces should receive explicit GD&T or size tolerances; <±0.01 mm should be treated as an engineering-review item, not a default quote assumption.
Q.How do I reduce the machining cost of an actuator bracket?
Design for 3-axis milling by minimizing setups (keep features on one or two faces). Use standard tool radii for internal corners (e.g., larger than 3mm), rely on standard ISO 2768 tolerances for non-mating surfaces, and avoid deep pockets.
Q.Why should I use GD&T True Position for mounting holes?
Instead of linear dimensions, applying True Position to mounting holes ensures the actuator aligns properly every time. It defines how holes relate to your mounting datums, reducing assembly failures without unnecessarily tightening linear tolerances.
Q.What surface finishes do you provide?
As-machined (Ra 3.2 µm or 1.6 µm) is standard. We also offer bead blasting, anodizing (Type II or III for aluminum), passivating (for stainless steel), and powder coating through our finishing partners.
Q.Do you offer CMM inspection for brackets?
Yes, we provide CMM inspection reports for critical datums, especially for aerospace or high-precision industrial actuator brackets where perpendicularity and flatness are strict.
Q.How does aspect ratio affect bracket milling?
Brackets with high length-to-thickness ratios (thin and long) are prone to warping and chatter during milling. They require custom fixturing, stress-relieved materials, or slow feed rates, which increases cost.
Q.Can you tap holes directly into the bracket?
Yes, CNC tapping is standard for mounting holes. We can also install helicoils or threaded inserts for aluminum brackets that require high-strength or frequently assembled threads.
